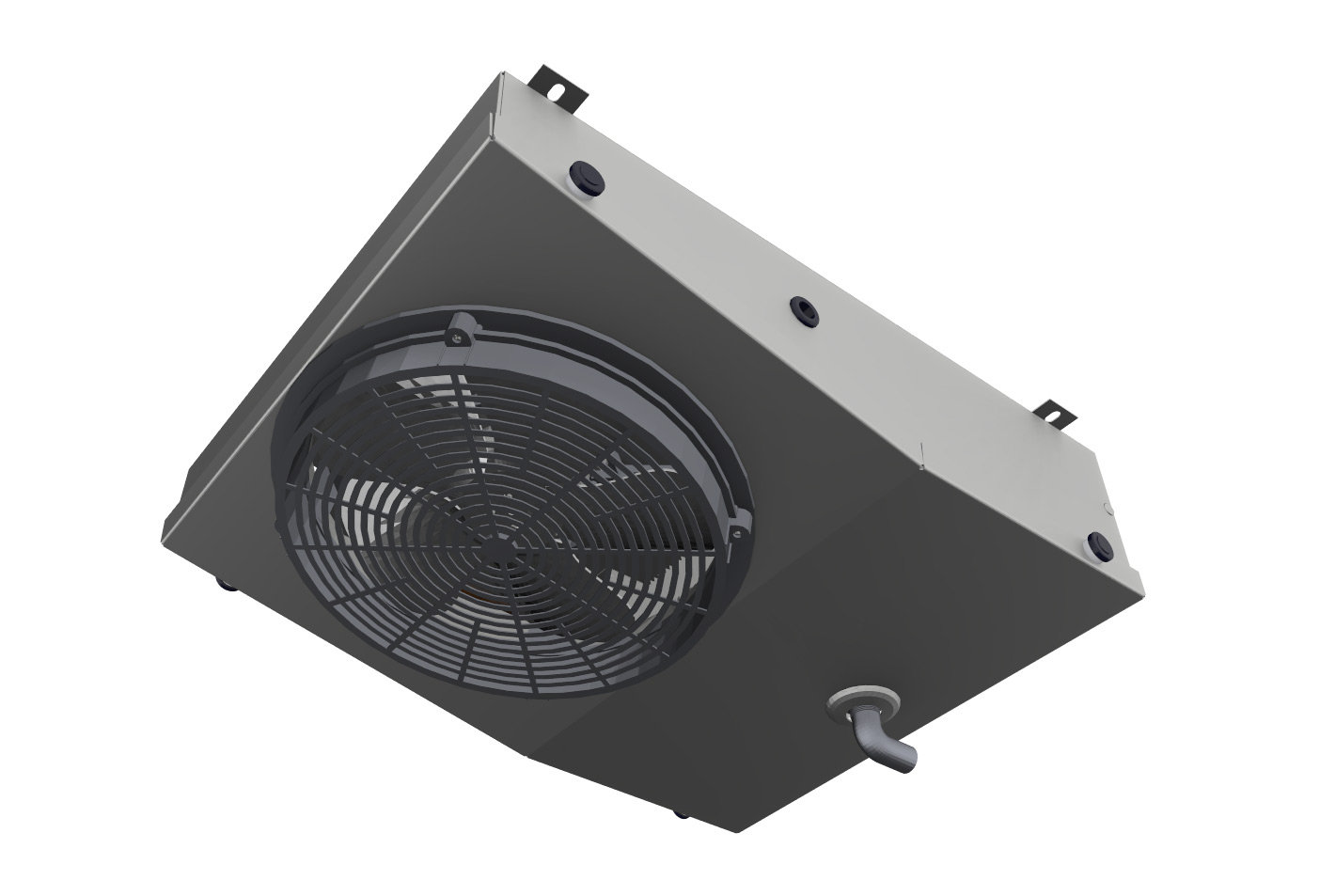

Slim Angled Evaporators

Code: SOR

Capacity

The nominal capacities calculated according to European standards that refer to SC1-SC2-SC3-SC4 conditions and are valid for R404A.

Coil

3/8 copper tube 0,35mm thickness.

Staggered copper tubes 25×21,65 mold geometry.

Aluminum fins 0,19mm thick.

The coils are designed with aluminum fins spaced at 4mm crimped onto copper tubes.

Header input and output tube connections made of copper.

All coils are tested with 24 bar pressure.

The coil circuits are designed for refrigerants R404A, R507F, R449A, R507C, R134A, R407C.

Casing

The casing of Slim Angled Evaporators are manufactured from aluminum.

Fans

Slim Angled Evaporators provided With Fans.

Available Fan diameters Ø200 / Ø250 / Ø300.

Defrost Heaters

DH1 Combination (Coil) is suitable for 0°C/+5°C cold room applications.

Slim Angled Evaporators provided Without Defrost Heaters.
